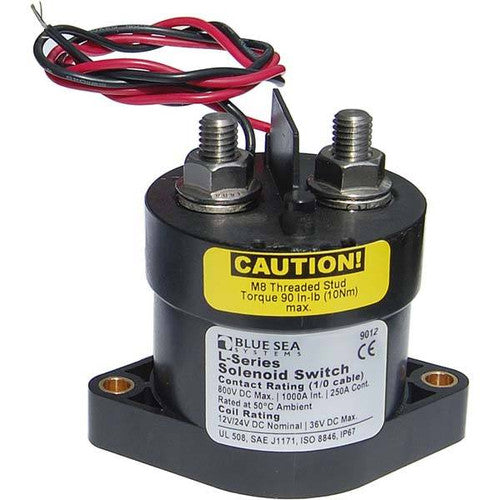

Blue Sea L-Series Solenoid Switch 12 - 24V

Blue Sea Systems L-Series Solenoid Switch 12-24V

Features:

• Hermetically sealed contacts / vaporproof
• Ignition protected - safe for installation aboard gasoline powered boats
• Can function as a remote battery switch
• Activated by an ON-OFF switch mounted anywhere
• Integrated coil control minimizes heating and amperage draw
• CE Marked
• 450 Amp Class
• Designed for 12 or 24 Volt systems
• Ignition protected -- safe for installation aboard gasoline-powered boats
• Can function as a remote battery switch
• Activated by a low amperage ON-OFF switch mounted anywhere

Specifications
Control Circuit Connection	Tinned Wire
Nominal Voltage	12V DC 24V DC
Coil Function	Normally Open
Mounting	#10
Operating Amperage Current	3.6A when changing state
Amperage Operating Current continuous	0.13A @ 12 V 0.07A @ 24 V
Continuous Rating	250A  300A  400A  450A
Intermittent Rating	275A (5 min)  400A (5 min)  500A (5 min)  600A (5 min)
Contact Form	SPST-NO
Cranking Rating 30 sec	1,000A
Input Voltage	8.5-36V DC
Inrush Rating: 0.25 sec (10 repeats)	2000A
Switching Cycles	1,000,000
Terminal Stud	Serrated Flange Nut
Terminal Stud Length	0.66in (16.76 mm)
Terminal Stud Size	5/16" (M8)
Terminal Stud Torque	80 in-lb (9.04 Nm)
Wire Leads	20 AWG
Weight	1.00lb (0.45 kg)
