BEP Contour Battery Switch On/Off

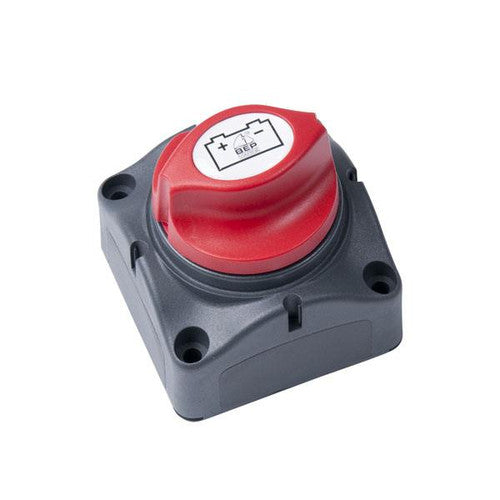

BEP 701 Contour Battery Master Switch (On/Off)

The BEP 701 Contour Battery Switch is a master battery switch with on/off operation. Constructed of high strength, fiber reinforced plastic, this battery switch is designed for excellent high temperature performance and resistance to chemicals. This switch is also manufactured with BEP's patented Contour Locking System, allowing it to be a stand alone unit, or locked together with other switches. The control knob features an interchangeable labeling system, allowing a full range of applications. The control knob can also be removed by switching to a counter-clockwise 45 degree position. Three removable side panels allow access of up to 1/0 cables and a rear cover insulates the rear terminals against any short circuits. This combination ensures the switch meets ABYC requirements.

Features:

• Constructed of molded, high-strength, fiber reinforced plastic
• Excellent temperature performance and resistance to chemicals
• Patented contour locking system allows switch to be locked together with other switches
• Control knob can be removed
• Can be surface or recess mounted by cutting a 2.1" hole
• Tin-plated copper studs and nuts
• Ignition protected

Specifications:

• Dimensions: 2.75" L x 2.75" W x 3" H
• Mounting hole: 2.1"
• Operation: On/Off
• Continuous Rating: 275 A DC
• Intermittent Rating (5 min): 455 A DC
• Crank Rating (10 sec): 1250 A DC
• Voltage: 48 V DC
• Stud Size: 2 x 3/8" / 10mm
• Cable to meet rating: 3/0 / 95mm²
