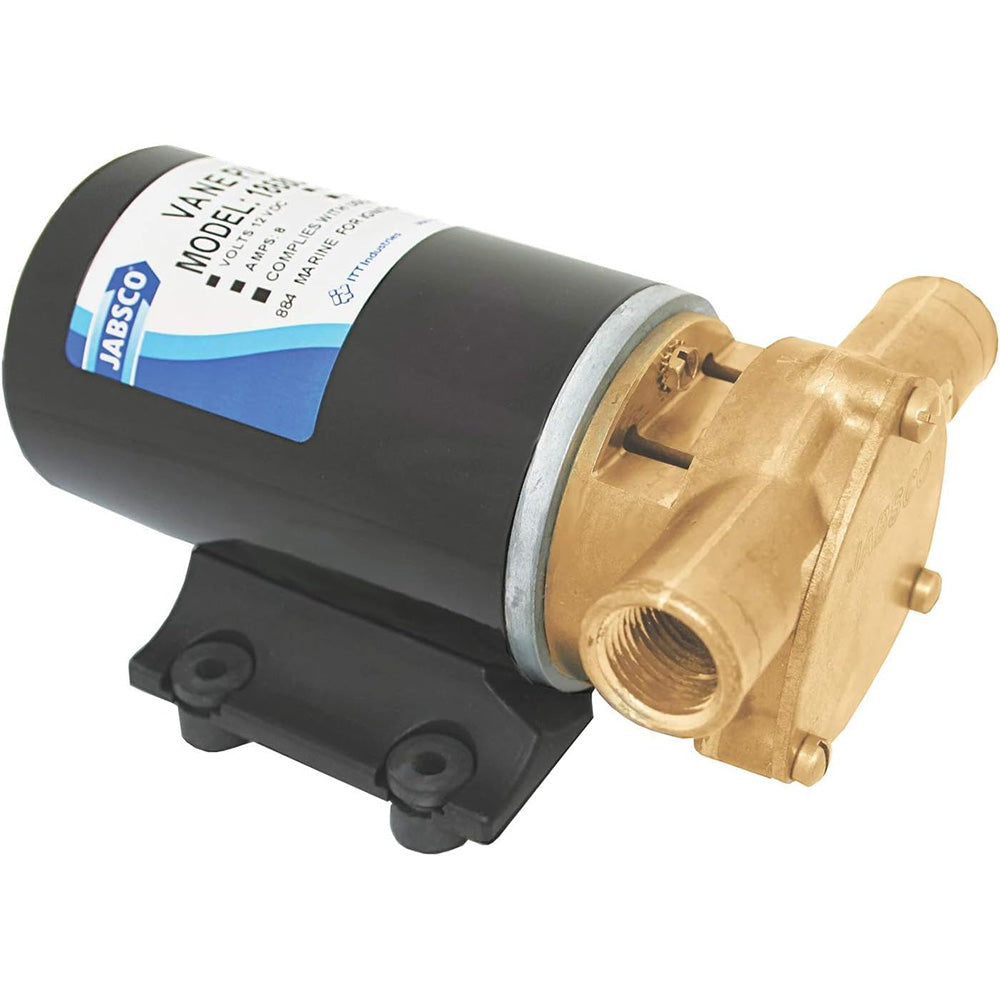

Jabsco Light Duty Diesel Transfer Vane Pump - 24V [18680-0940]

Light Duty Diesel Transfer Vane Pump - 24V

Features:

• The pump head may be mounted at 90° increments on the motor to allow mounting as needed
• Meets USCG 183.410 & ISO8846 Marine (Ignition Protection)

Specifications:

• Body Materials: Bronze
• Rotor: Plastic - Liquid Crystal Polymer
• Vanes: Plastic - Polyphenylene Sulfide
• Seal - Nitrile Lip Seal
• Shaft Material: Stainless Steel
• Port Type: 1/2" NPT Female or 1" (25mm) Hose barb
• Voltage: 12 or 24VDC
• Motor Type: Intermittent duty permanent magnet type
• Duty Cycle: 30 minutes at 10ft (3m) at 86°F (30°C)
• Weight: 2.5 (kg) 5 1/2 (lb)
