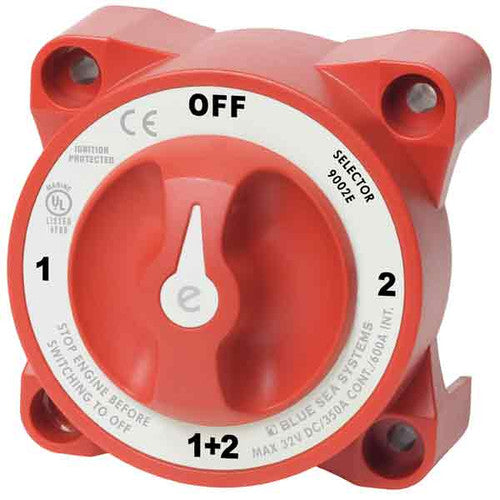

Blue Sea e-Series Selector Battery Switch w/ AFD

Blue Sea Systems e-Series Selector Battery Switch w/ AFD

• Switches isolated battery banks to all loads or combines battery banks to all loads
• Includes AFD (Alternator Field Disconnect)
• Make-before-break contact design allows switching between battery banks without power interruption
• Ignition protected—safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting

Specifications:

• Switch Type: Selector 4 Position
• Color: Red
• Switch Positions: 4
• Battery Combine: Yes
• Alternator Field Disconnect : Yes
• Maximum Voltage: 32V DC
• Continuous Rating:  350A
• Intermittent Rating: 600A (5 min)
• Cranking Rating 10 sec: 2000A
• Cranking Rating 1 min: 1000A
• Battery Inputs: 2
• Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
• Cable Size to Meet Ratings: 4/0 AWG (120mm²)
• Mounting Holes: Accept 1/4" (M6) Screw
• Terminal Stud Size: 3/8"-16 (M10)
• Terminal Stud Torque: 140 in-lb (15.82 Nm)
• Weight: 1.30lb (0.59 kg)
