AnchorLift Barracuda 600 Vertical Windlass

AnchorLift Barracuda 600 Vertical Windlass - 1/4" Chain 1/2" Rope

The Barracuda 600 by AnchorLift is constructed to provide a long lasting vertical windlass that provides a silent and smooth operation. The low profile design helps take up less space for a cleaner deck with less tripping hazards. The manual free fall feature with an adjustable clutch allows you to have a high speed drop of up to 115' per minute. The Barracuda is able to work with a rope/chain combination or with a chain only setup. The Barracuda 600 Vertical Windlass is able to use chain up to 1/4" and rope up to 1/2".

Features:

• Low profile design
• Adjustable clutch
• Easy install
• Manual free fall
• 316L Stainless Steel
• High speed drop

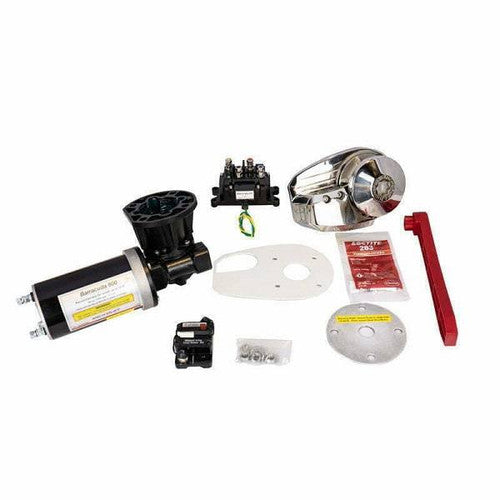

Includes:

• Windlass Unit
• Motor & Gearbox
• Solenoid
• Circuit Breaker
• Handle
• Gear Box Backing Plate
• EPDM Base Gasket
• Thread Locker
• Hardware
• Mounting Template

Specifications:

• Unit Weight: 16 lbs
• Shaft diameter: .55"
• Designed for: Boats 20' - 30'
• Boat Weight: Up to 8,800 lbs
• Electrical System: 12V
• Max working load: 397 lbs
• Max power pull: 1,190 lbs
• Max speed down: 115' per minute
• Max speed up: 85' per minute
• Chain size: 1/4"
• Chain length: 98' - 165'
• Rope size: 1/2"
• Anchors: 13 - 22lbs
• Ground tackle weight: 132lbs
• Motor: 1000Watt, 12V
• Amp draw down: 18Amp
• Amp draw up: 47A
• Circuit breaker: 80A
• Cable size: 2-4 AWG
• Deck thickness: 3/4" - 1.5"
