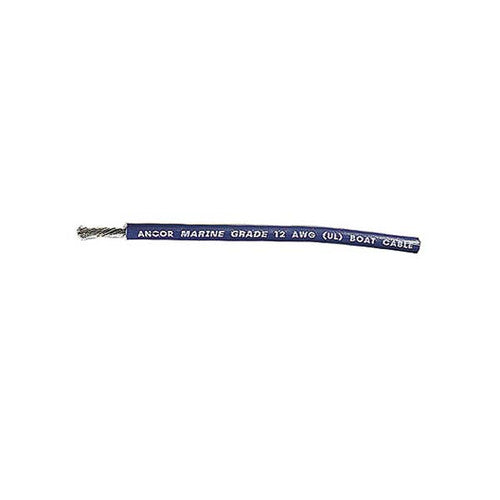

Ancor 12 Gauge Tinned Primary Marine Wire - Assorted Colors

Ancor 12 Gauge Tinned Primary Marine Wire

THIS PRODUCT IS SOLD BY THE FOOT - Minimum Purchase:20 units

Ancor Marine Grade wire and cable is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing. Ancor's proprietary premium vinyl insulation stays flexible even in extreme cold (-40°F / -40°C) and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600 volts, 221°F / 105°C dry and 167°F / 75°C wet, and is resistant to heat and abrasion.

Key Features:

• 12 Gauge Wire
• Manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis
• Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing
• Stays flexible even in extreme cold (-40 deg C) and resists salt water, battery acid, oil, gasoline and ultra-violet radiation.
• Exceeds all UL 1426, US Coast Guard Charter boat (CFR title 46) and ABYC standards.

Specifications:

• Wire Size: 12 AWG
• Nominal O.D.: 5/32" (4.0 mm)
• Minimum Bend Radius: 1-1/4" (3.2 cm)

Wire Gauge Chart - Critical Applications (3% Drop)

Wire Gauge Chart - Non-Critical Applications (10% Drop)
